XN-MAGIC 25
Model: XN-MAGIC 25
XN-MAGIC 25 is a medium-format industrial gantry multi-material 3D printer. It supports fused-granulate fabrication with thermoplastic pellets and concrete-mortar 3D printing. With a build volume of 2500 × 2500 × 2500 mm, it is designed for large plastic parts, molds, concrete components and complex geometries.
Equipment Parameters
Equipment Details

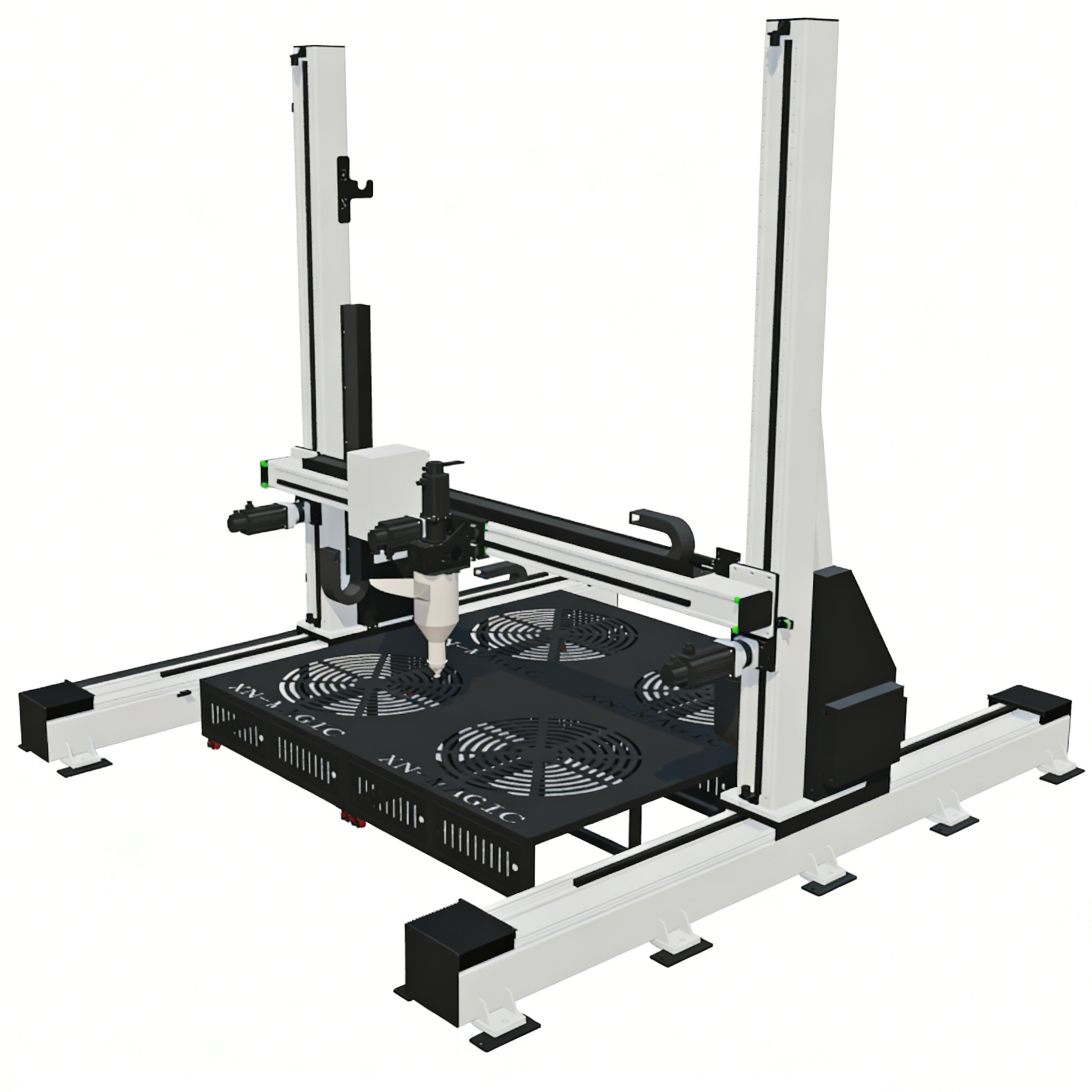

XN-MAGIC 25 Industrial Gantry Multi-Material 3D Printer
XN-MAGIC 25 features an industrial gantry architecture and provides a build volume of 2500 × 2500 × 2500 mm. It is designed for the additive manufacturing of medium- and large-format components and complex geometries.
The system supports two printing processes:
- Fused-granulate fabrication: Thermoplastic pellets are heated, melted and extruded layer by layer along a digitally generated toolpath.
- Concrete-mortar 3D printing: Cement-based material is deposited layer by layer through a dedicated feeding and extrusion system.
Its modular printing configuration allows the appropriate process system to be selected for plastic-pellet or concrete-mortar applications.
Typical applications
- Large plastic parts and functional prototypes
- Molds, patterns and complex surfaces
- Concrete construction components
- Landscape elements and art installations
- Material and additive-manufacturing research
- Customized and small-batch digital manufacturing
Printing speed, layer height, accuracy and material parameters depend on the selected printing system, material formulation and process settings. Final data is subject to the approved equipment configuration and technical agreement.
Technical Specifications
| Item | Specification |
|---|---|
| Model | XN-MAGIC 25 |
| Product class | Medium-format industrial-grade |
| Structure | Gantry |
| Build volume | 2500 × 2500 × 2500 mm |
| Plastic printing process | Fused-granulate fabrication with thermoplastic pellets |
| Concrete printing process | Extrusion 3D printing with concrete mortar |
| Supported materials | Thermoplastic pellets and concrete mortar |
| Applications | Large plastic products, molds, concrete components, landscape elements and artistic forms |
Equipment Details
XN-MAGIC 25 Industrial Gantry Multi-Material 3D Printer
XN-MAGIC 25 features an industrial gantry architecture and provides a build volume of 2500 × 2500 × 2500 mm. It is designed for the additive manufacturing of medium- and large-format components and complex geometries.
The system supports two printing processes:
- Fused-granulate fabrication: Thermoplastic pellets are heated, melted and extruded layer by layer along a digitally generated toolpath.
- Concrete-mortar 3D printing: Cement-based material is deposited layer by layer through a dedicated feeding and extrusion system.
Its modular printing configuration allows the appropriate process system to be selected for plastic-pellet or concrete-mortar applications.
Typical applications
- Large plastic parts and functional prototypes
- Molds, patterns and complex surfaces
- Concrete construction components
- Landscape elements and art installations
- Material and additive-manufacturing research
- Customized and small-batch digital manufacturing
Printing speed, layer height, accuracy and material parameters depend on the selected printing system, material formulation and process settings. Final data is subject to the approved equipment configuration and technical agreement.
